>>Videos about battery strapping tool JD-PSE13/16-14

1. How to adjust it that the lift handle is too laborious?
The lift handle (JD-PSE-G004) might come with being too laborious. Follow this video, you can deal with this problem easily .
Video link:https://youtu.be/RJZhlF3FAvA

2. How to adjust the space between friction parts?
Sometimes the sealing is not perfect, it may be because the space between friction parts (JD-PSE-G008/JD-PSE-G013) is a little large or narrow. Follow this video, you can deal with this problem easily .
Video link:https://youtu.be/GflfR9l2EB0

3. How to insert a gasket to heighten the tooth plate of JD-PSE 13/ 16 -14?
Sometimes the strap can't be tightened and slips easily during tightening. This may be because the strap is too thin. So in this case,a gasket (JD-PSE-G028) is needed to heighten the tooth plate. Follow this video to understand it better.
Video link:https://youtu.be/k7mdrBTbjcM

4. How to replace the cutter of JD-PSE 13/ 16-14?
As you know ,The cutter (JD-PSE-G016) will become dull after using it for a long time and it can't cut the straps completely. At this time, you need to replace the cutter. It is easy to change the cutter according to the video operation.
Video link:https://youtu.be/1ZJiQaMN6es

5. How to replace the feeding wheel of JD-PSE13 /16-14?
The feeding wheel(JD-PSE-G012), also called tension wheel, need to be replaced when it is damaged.Follow this video, you can deal with its replacement easily
Video link:https://youtu.be/Jxpa91cuG9I

6. How to replace the lower friction parts of JD-PSE 13 /16-14
The lower friction part(JD-PSE-G013) need to be replaced when it is damaged.Follow this video, you can deal with its replacement easily
Video link:https://youtu.be/vl1pXgsRG2E

7. How to replace the spring for PET and PP straps .
Sometimes the cutter can’t cut off the PP straps, it might be because the spring on the cutter is a short one(JD-PSE-G018), you need to replace it with a long spring(JD-PSE-G020).Then how to replace it? Just Follow this video, you can deal with its replacement easily .
Video linkhttps://youtu.be/Wda8JCG92hg
8. How to replace the tooth plate of JD-PSE 13 /16-14?
The tooth plate(JD-PSE-G011) , also called gear plate, need to be replaced when it is damaged.Follow this video, you can deal with its replacement easily
Video link:https://youtu.be/18m5DcX77NQ

9. How to operate the battery strapping tool JD-PSE13/16-14?
Tips: Keep in mind when using this tool.
*Please adjust its tension force and welding time to achieve perfect sealing joints and good fastening effects.
*You’d better do not press the tightening button to run the tension motor without straps to avoid damaging the feeding wheel and gear plate.
* After the indicator light blinks three times, then the tool can be moved away from the straps.
Video link1 :https://youtu.be/v5Lz0j8DldE
Video link2:https://youtu.be/dtyykj8tEnY
Video link3:https://youtu.be/IjAAnrJKyFM

10. How to reverse the feeding wheel and start friction welding action?
*In some situations, you need to reverse the feeding. Situation 1: Straps are over feeding.
Situation 2 , straps need to be taken away from the tooth plates.
*Two ways to reverse the feeding wheel. （many other bands may not have this function）
①　Only after pressing the tightening button first, then it can start the reverse movement of the feeding wheel by lifting the handle once .
②　It also can start the reverse movement of the feeding wheel by lifting the handle twice continuously
*Only after the tightening button is pressed first, then it can start the start friction welding action by press the welding button(JD-PSE-G005)
*Sometimes, battery strapping tool JD-PSE13/16-14 can’t start reverse movement of the feeding wheel.It may be because the reverse switch (JD-PSE-E007)has poor contact or the welding joint falls off. What you need to do is cut off the straps and check the reverse switch.
Video link:https://youtu.be/dkz0-jn3I8w

11. How to do daily maintenance
*Daily clear: Remove the battery and use an air gun to clean the area around the feeding wheel and gripper,and the area around the sealing & cutting unit If the air gun could not dislodge the debris between the teeth of feeding wheel,it is suggested to sharp the tip of PET (or other plastic) straps and use it as a tool to clean the strap debris.Please do not use any metal material or hard material to clean the teeth to avoid any damage to the teeth of feeding Wheel.
*Turn off the power switch and remove the battery if no operation for a long time.
Video link:https://youtu.be/M47JR2vKX_E

12. How battery stapping tool work with pallet threading tool?
The pallet threading tool  is a professional auxiliary tool for pallet threading. It is designed for PET,PP and other straps Its high efficiency and durability enable users to feed the straps under and through the pallets while standing comfortably,which is also more energy-saving and safer.It works with strapping tools a lot in packing industry. Video can make you have a better view of it.
Video link:https://youtu.be/dswYeZIIZRU

13. How big different it is between battery strapping tools and manual tools?
Manual tool is cheaper, more laborious,while battery strapping tool can make users enjoy an efficient and elegant way of strapping. Video can make you have a better view of it.
Video link:https://youtu.be/uJKZfCerIVE



>> Videos about the pallet threading tool-Blue-Sword.

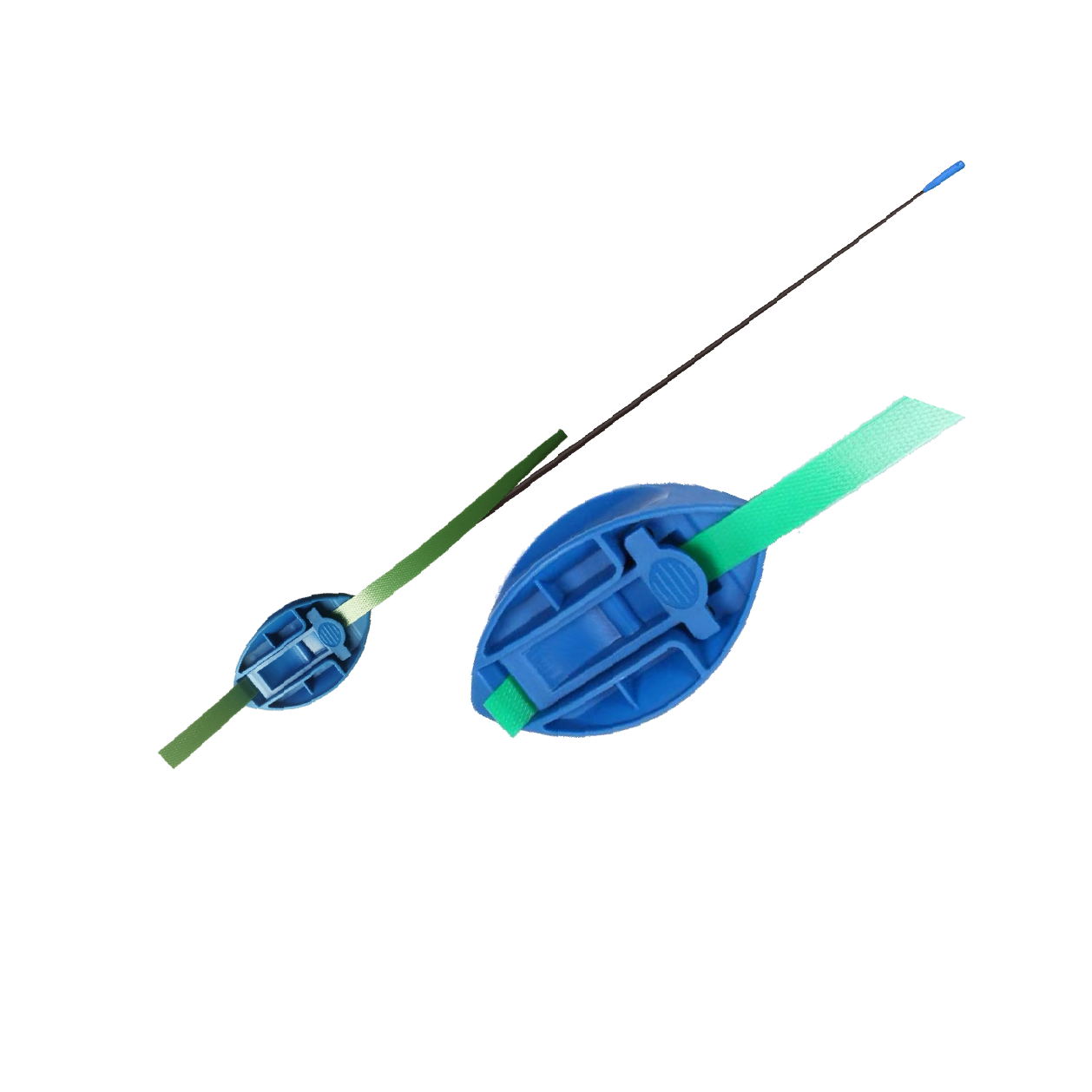

14. How does the pallet threading tool benefit users?
Blue-Sword threading tools is a professional auxiliary tool for pallet threading It is designed for PET,PP and other straps. Its high efficiency and durability enable users to feed the straps under and through the pallets while standing comfortably, which is also more energy-saving and safer. That means no more bending, kneeling, or stooping over while threading strapping.It works with strapping tools a lot in packing industry.
Video link1：https://youtu.be/dswYeZIIZRU
Video link2：https://youtu.be/X7TxuHrov2M

>>Videos about the battery strapping tool JDH-16.

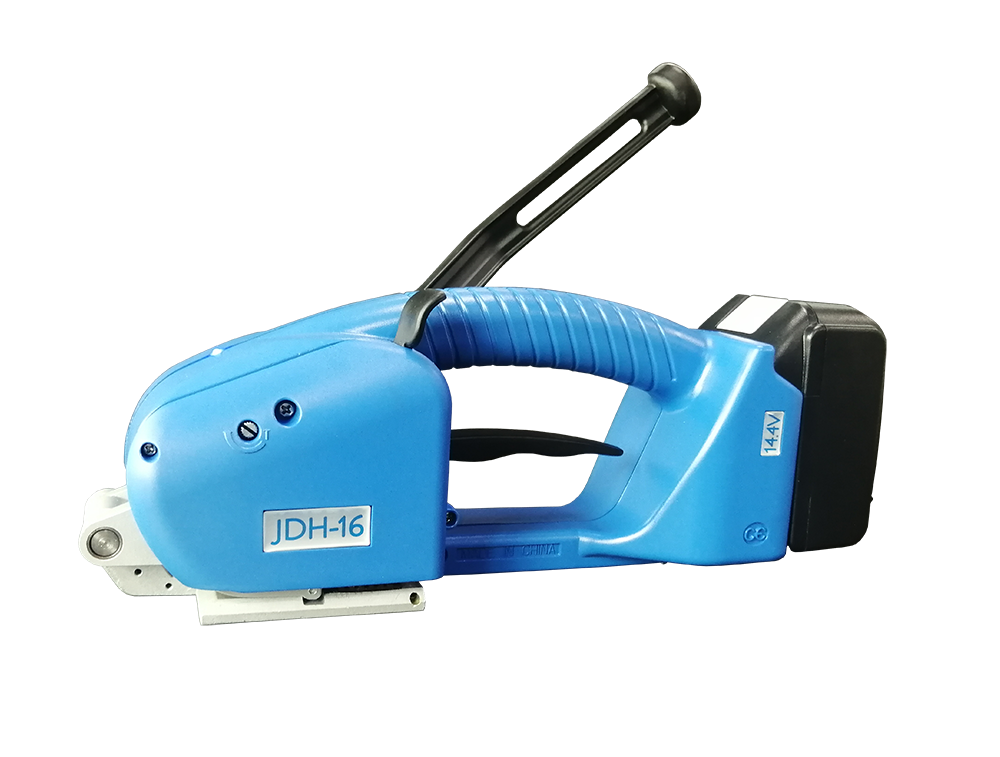

15. How does the battery strapping tool JDH-16  works?
JDH-16 is a classical handheld battery powered strapping tool. Thanks to its manual tightening mode, so it is more affordable compared with those tightened by motor on the market.What's more,with flexible settings, wide tension range, it is perfect for both PP and PET strapping. JDH-16 is widely used in all industries and sectors. JDH-16 comes with the highest productivity and performance to match the customers' packaging demands around the world.
Video link1: https://youtu.be/Fdd5i6nWls4
Video link2: https://youtu.be/6VPS-sGpGqA



>> Videos about pallet strapping machine JD-008.

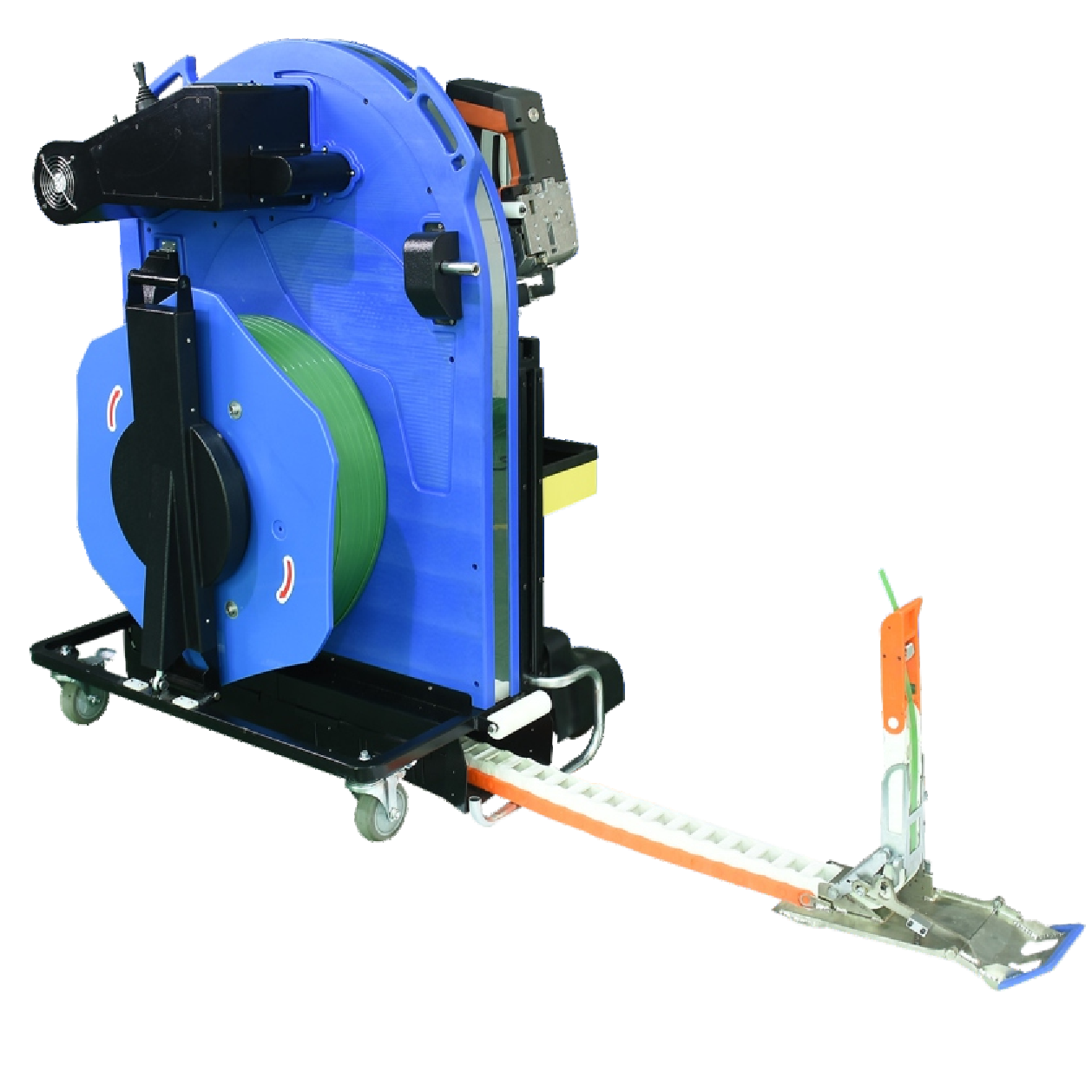

16. How does the pallet strapping machine JD-008 help you enjoy an elegant/ efficient way of pallet strapping?

JD-008 Ergonomic pallet strapping machine with electrically driven chain lance via motor is a hot product in most industries. It can make you have an elegant way of strapping without bending down ,which is a comfortable way by one person from one side only. Just roll the strapping machine in front of the pallet. Then the Chain Lance pulls the strap through under the pallet and up again on the rear side and over the pallet. The strap is tightened and welded securely by the sealing head.Video can make you have a better view of it.
Video link1: https://youtu.be/RWxbwetzmg0
Video link2:https://youtu.be/z9jz9g72LGw
Video link3:https://youtu.be/_MJTjm_6DGI
Video link4:https://youtu.be/8VjhEWtJjM8
Video link5:https://youtu.be/u5nPGqqQpmg
